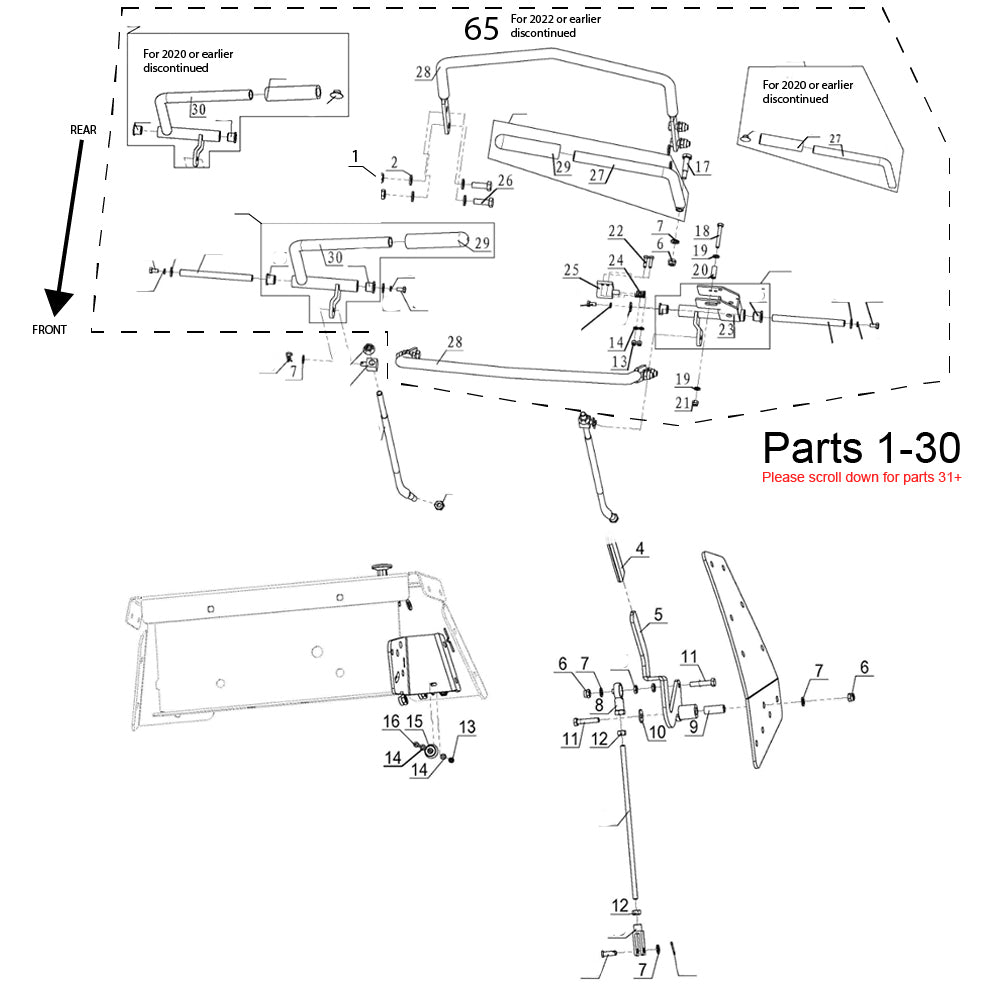

48-52SC Handle Control Assembly - 2022 & Earlier

Custom Image
600-201-0010 NYLON NUT M10
$0.58
600-301-0010 PLAIN WASHER 10
$0.06
601-138 RUBBER GRIP
$2.63
601-139A PARKING HANDLE WELDMENT
$15.58
600-201-0008 NYLON NUT M8
$0.26

26

26
600-301-0008 PLAIN WASHER 8
$0.03

3

3

3

3
600-903-0008 JOINT BEARING M8
$4.52
601-140A PARKING HANDLE FIXING SLEEVE
$2.81
600-302-0008 PLAIN WASHER 8
$0.09
600-001-0840 BOLT M8 X 40
$0.23

23
600-203-0008 NUT M8
$0.08

8
600-201-0005 NYLON NUT M5
$0.08

8
600-301-0005 PLAIN WASHER 5
$0.10

10

10
601-078 RUBBER BUSHING
$0.20
600-101-0516 BOLT M5 X 16
$0.05
601-141 HANDLE SHAFT
$2.46
600-001-0645 BOLT M6 X4 5
$0.12
600-301-0006 PLAIN WASHER 6
$0.10

10
601-142 BUSHING
$0.33
600-201-0006 NYLON NUT M6
$0.12
600-101-0520 BOLT M5 X 20
$0.06
601-143 LEFT DRIVE CONTROL
$36.80
601-144 SPRING
$0.32
601-145 SWITCH
$10.99
600-002-1030 BOLT M10 X 30
$0.26
601-146 LEFT HANDLE WELDMENT
$36.80

3680
601-147 HANDLE
$32.39

3239
601-262 Grip
$5.61

561
601-149 RIGHT DRIVE CONTROL
$31.57

3157

Parts Information

Sku: 600-201-0010
600-201-0010 NYLON NUT M10

Price: $0.58

Sku: 600-301-0010
600-301-0010 PLAIN WASHER 10

Price: $0.06

Sku: 601-138
601-138 RUBBER GRIP

Price: $2.63

Sku: 601-139A
601-139A PARKING HANDLE WELDMENT

Price: $15.58

Sku: 600-201-0008
600-201-0008 NYLON NUT M8

Price: $0.26

Sku: 600-301-0008
600-301-0008 PLAIN WASHER 8

Price: $0.03

Sku: 600-903-0008
600-903-0008 JOINT BEARING M8

Price: $4.52

Sku: 601-140A
601-140A PARKING HANDLE FIXING SLEEVE

Price: $2.81

Sku: 600-302-0008
600-302-0008 PLAIN WASHER 8

Price: $0.09

Sku: 600-001-0840
600-001-0840 BOLT M8 X 40

Price: $0.23

Sku: 600-203-0008
600-203-0008 NUT M8

Price: $0.08

Sku: 600-201-0005
600-201-0005 NYLON NUT M5

Price: $0.08

Sku: 600-301-0005
600-301-0005 PLAIN WASHER 5

Price: $0.10

Sku: 601-078
601-078 RUBBER BUSHING

Price: $0.20

Sku: 600-101-0516
600-101-0516 BOLT M5 X 16

Price: $0.05

Sku: 601-141
601-141 HANDLE SHAFT

Price: $2.46

Sku: 600-001-0645
600-001-0645 BOLT M6 X4 5

Price: $0.12

Sku: 600-301-0006
600-301-0006 PLAIN WASHER 6

Price: $0.10

Sku: 601-142
601-142 BUSHING

Price: $0.33

Sku: 600-201-0006
600-201-0006 NYLON NUT M6

Price: $0.12

Sku: 600-101-0520
600-101-0520 BOLT M5 X 20

Price: $0.06

Sku: 601-143
601-143 LEFT DRIVE CONTROL

Price: $36.80

Sku: 601-144
601-144 SPRING

Price: $0.32

Sku: 601-145
601-145 SWITCH

Price: $10.99

Sku: 600-002-1030
600-002-1030 BOLT M10 X 30

Price: $0.26

Sku: 601-146
601-146 LEFT HANDLE WELDMENT

Price: $36.80

Sku: 601-147
601-147 HANDLE

Price: $32.39

Sku: 601-262
601-262 Grip

Price: $5.61

Sku: 601-149
601-149 RIGHT DRIVE CONTROL

Price: $31.57

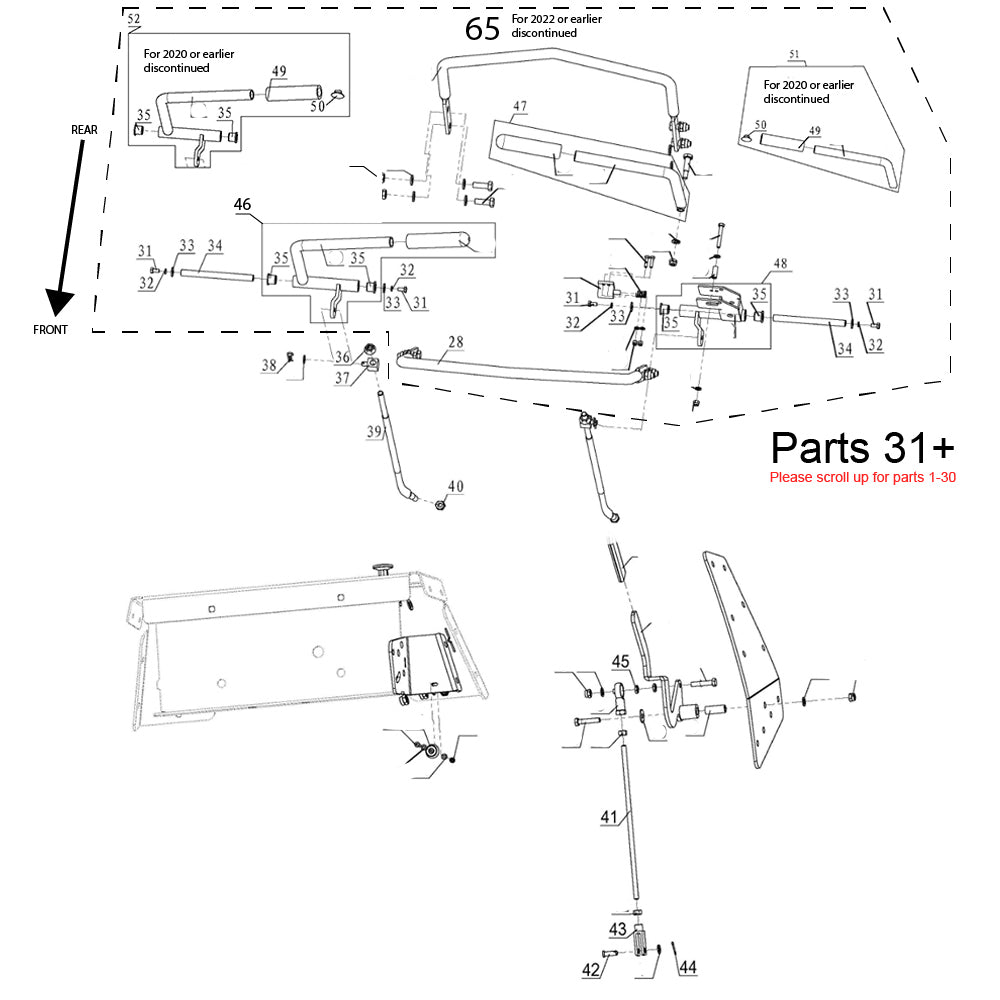

Custom Image
600-002-0612 BOLT M6 X 12
$0.07

7

7

7
600-305-0006 SPRING WASHER 6
$0.05

5

5

5
600-302-0006 PLAIN WASHER 6
$0.07

7

7

7
601-150 ARM SHAFT
$3.51

351
601-151 HANDRAIL SHAFT BUSHING
$3.31

331

331

331

331

331
600-202-0010 NUT FLANGE M10
$0.18
601-130 JOINT
$2.69
601-124 HAIR PIN COTTER
$0.35
601-152 DRIVE LINKAGE
$16.36
600-203-0010 NUT M10
$0.12
601-153 BRAKE LINKAGE
$4.09
600-405-0824 CLEVIS PIN 8 X 24
$0.24
601-127 YOKE
$5.38
600-403-0220 COTTER PIN 2 X 20
$0.10
600-204-0008 NUT M8
$0.05
601-234 RIGHT CONTROL LEVER ASSEMBLY
$43.80
601-235 LEFT HANDLE PART
$42.41
601-236 LEFT CONTROL LEVER PART
$43.41
601-148 GRIP
$5.61

561
336-231 OPERATION OF THE RUBBER BLOCK
$1.11

111
601-263 The right operating handle components
$43.80
601-264 The left operating handle components
$42.41

Parts Information

Sku: 600-002-0612
600-002-0612 BOLT M6 X 12

Price: $0.07

Sku: 600-305-0006
600-305-0006 SPRING WASHER 6

Price: $0.05

Sku: 600-302-0006
600-302-0006 PLAIN WASHER 6

Price: $0.07

Sku: 601-150
601-150 ARM SHAFT

Price: $3.51

Sku: 601-151
601-151 HANDRAIL SHAFT BUSHING

Price: $3.31

Sku: 600-202-0010
600-202-0010 NUT FLANGE M10

Price: $0.18

Sku: 601-130
601-130 JOINT

Price: $2.69

Sku: 601-124
601-124 HAIR PIN COTTER

Price: $0.35

Sku: 601-152
601-152 DRIVE LINKAGE

Price: $16.36

Sku: 600-203-0010
600-203-0010 NUT M10

Price: $0.12

Sku: 601-153
601-153 BRAKE LINKAGE

Price: $4.09

Sku: 600-405-0824
600-405-0824 CLEVIS PIN 8 X 24

Price: $0.24

Sku: 601-127
601-127 YOKE

Price: $5.38

Sku: 600-403-0220
600-403-0220 COTTER PIN 2 X 20

Price: $0.10

Sku: 600-204-0008
600-204-0008 NUT M8

Price: $0.05

Sku: 601-234
601-234 RIGHT CONTROL LEVER ASSEMBLY

Price: $43.80

Sku: 601-235
601-235 LEFT HANDLE PART

Price: $42.41

Sku: 601-236
601-236 LEFT CONTROL LEVER PART

Price: $43.41

Sku: 601-148
601-148 GRIP

Price: $5.61

Sku: 336-231
336-231 OPERATION OF THE RUBBER BLOCK

Price: $1.11

Sku: 601-263
601-263 The right operating handle components

Price: $43.80

Sku: 601-264
601-264 The left operating handle components

Price: $42.41
