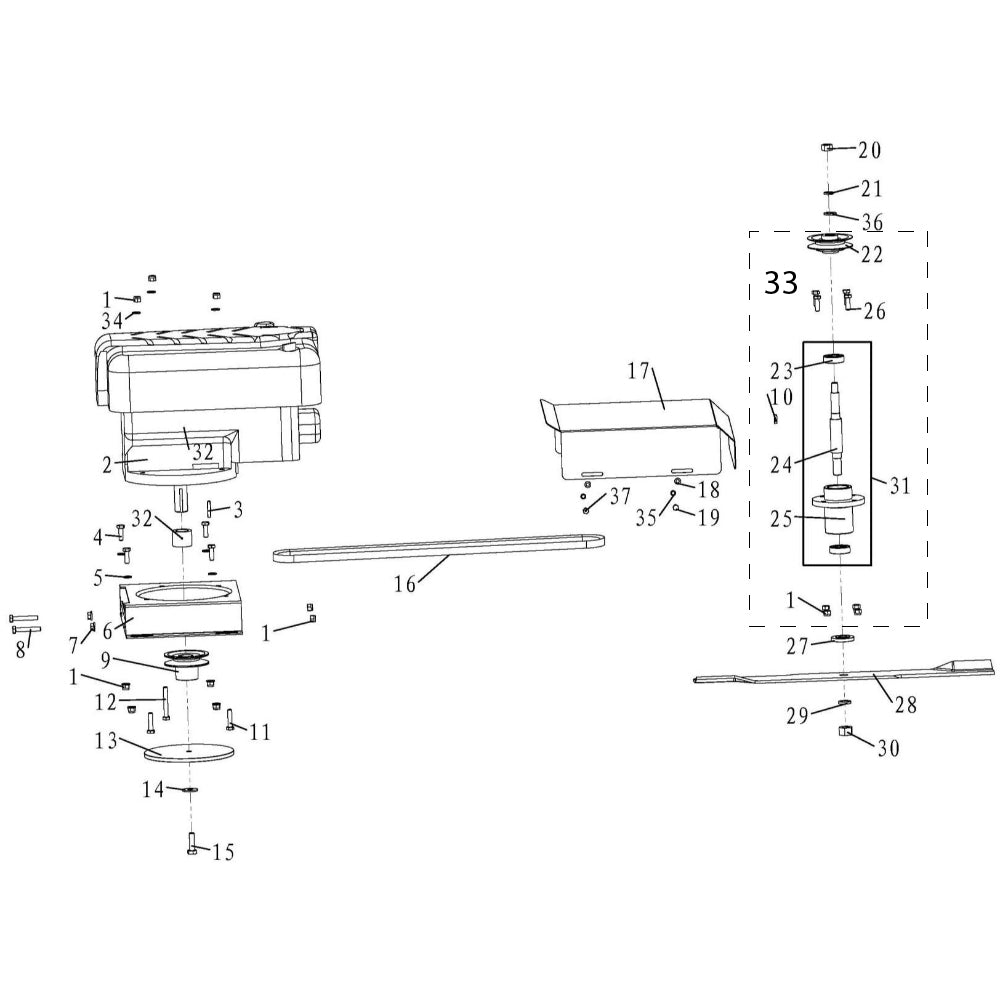

22BP Gearing Assembly

Custom Image
200-030 NYLON NUT M8 GB889-86
$0.07

7

7

7
424A-073 Engine Assembly
Call for Price
100-139 Flat key6.35x6x38
$0.57
200-119 HEXAGON BOLT M8X25 GB5783-86
$0.16
336-239 PLAIN WASHER 3 X 8.5ID X 20OD
$0.58
400-030 Engine Mount - 2018 or Earlier
Call for Price
400-030A 400-030 Engine Mount - 2021 Upgrade Design
Call for Price
600-202-0008 NUT FLANGE M8
$0.15
200-179 HEXAGON BOLT M8X50 GB5783
$0.26
400-060 Engine pulley 25mm
$31.12
200-125 Key 5x6.5x16
$0.11
200-049 HEXAGON BOLT M8*35 GB5783-86
$0.18
200-220 HEXAGON BOLT M8X70 GB5783-86
$0.35
400-021 FLY WHEEL
$17.47
600-902-0010 Butterfly washer 10 DIN6796
$0.25
400-014 ENGINE BOLT
$1.69
400-033 BELT
$44.65
422B-005 MASTER LINK FOR 22"(B)
Call for Price
200-042 PLAIN WASHER 6 GB95-85
$0.05
200-036 HEXAGON BOLT M6*20 GB5783-86
$0.07
200-124 HEXAGON NUT M12*1.5 GB6170-86
$0.20
200-078 LOCK WASHER 12 GB93-87
$0.05
400-032A DECK PULLEY
$35.07
200-110 BEARING 6203 2RS
$7.19
422B-002A BLADE SHAFT
$25.72
400-015A BEARING BASE (CAST IRON)
$50.00
200-025 HEXAGON BOLT M8*30 GB5783-86
$0.17
400-019 BLADE SPACER
$3.74
422B-001 BLADE 22"
$25.04
200-096 LOCK WASHER 16 GB93-87
$0.10
200-017 HEXAGON NUT M16X1.5
$0.66
422B-007A SPINDLE ASSEMBLY
$60.00
424A-071 Straight pivot
$4.27

427
400-045 Spindle Assembly
$80.00
600-301-0008 PLAIN WASHER 8
$0.03
600-305-0006 SPRING WASHER 6
$0.05
600-301-0012 PLAIN WASHER 12
$0.09
200-313 HEXAGON BOLT M6 X 25 GB5783-86
$0.09

Parts Information
Sku: 200-030
200-030 NYLON NUT M8 GB889-86

Price: $0.07
Sku: 424A-073
424A-073 Engine Assembly

Call for Price

Sku: 100-139
100-139 Flat key6.35x6x38

Price: $0.57
Sku: 200-119
200-119 HEXAGON BOLT M8X25 GB5783-86

Price: $0.16
Sku: 336-239
336-239 PLAIN WASHER 3 X 8.5ID X 20OD

Price: $0.58
Sku: 400-030
400-030 Engine Mount - 2018 or Earlier

Call for Price

Sku: 400-030A
400-030A 400-030 Engine Mount - 2021 Upgrade Design

Call for Price

Sku: 600-202-0008
600-202-0008 NUT FLANGE M8

Price: $0.15
Sku: 200-179
200-179 HEXAGON BOLT M8X50 GB5783

Price: $0.26
Sku: 400-060
400-060 Engine pulley 25mm

Price: $31.12
Sku: 200-125
200-125 Key 5x6.5x16

Price: $0.11
Sku: 200-049
200-049 HEXAGON BOLT M8*35 GB5783-86

Price: $0.18
Sku: 200-220
200-220 HEXAGON BOLT M8X70 GB5783-86

Price: $0.35
Sku: 400-021
400-021 FLY WHEEL

Price: $17.47
Sku: 600-902-0010
600-902-0010 Butterfly washer 10 DIN6796

Price: $0.25
Sku: 400-014
400-014 ENGINE BOLT

Price: $1.69
Sku: 400-033
400-033 BELT

Price: $44.65
Sku: 422B-005
422B-005 MASTER LINK FOR 22"(B)

Call for Price

Sku: 200-042
200-042 PLAIN WASHER 6 GB95-85

Price: $0.05
Sku: 200-036
200-036 HEXAGON BOLT M6*20 GB5783-86

Price: $0.07
Sku: 200-124
200-124 HEXAGON NUT M12*1.5 GB6170-86

Price: $0.20
Sku: 200-078
200-078 LOCK WASHER 12 GB93-87

Price: $0.05
Sku: 400-032A
400-032A DECK PULLEY

Price: $35.07
Sku: 200-110
200-110 BEARING 6203 2RS

Price: $7.19
Sku: 422B-002A
422B-002A BLADE SHAFT

Price: $25.72
Sku: 400-015a
400-015A BEARING BASE (CAST IRON)

Price: $50.00
Sku: 200-025
200-025 HEXAGON BOLT M8*30 GB5783-86

Price: $0.17
Sku: 400-019
400-019 BLADE SPACER

Price: $3.74
Sku: 422B-001
422B-001 BLADE 22"

Price: $25.04
Sku: 200-096
200-096 LOCK WASHER 16 GB93-87

Price: $0.10
Sku: 200-017
200-017 HEXAGON NUT M16X1.5

Price: $0.66
Sku: 422B-007A
422B-007A SPINDLE ASSEMBLY

Price: $60.00
Sku: 424A-071
424A-071 Straight pivot

Price: $4.27
Sku: 400-045
400-045 Spindle Assembly

Price: $80.00
Sku: 600-301-0008
600-301-0008 PLAIN WASHER 8

Price: $0.03
Sku: 600-305-0006
600-305-0006 SPRING WASHER 6

Price: $0.05
Sku: 600-301-0012
600-301-0012 PLAIN WASHER 12

Price: $0.09
Sku: 200-313
200-313 HEXAGON BOLT M6 X 25 GB5783-86

Price: $0.09
